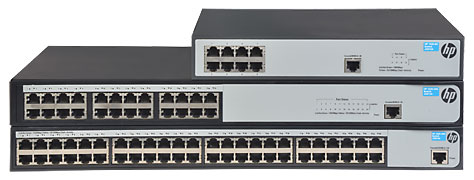

HP 1620 Switch Series
Fixed Port L2 Managed Ethernet Switches

HP 1620 Switch Series

HP Smart Web Managed Switches
HP 1620 Switch
USA: FREE Ground ShippingHP 1620-8G Switch
#JG912A
List Price: $129.00
Special: $99.00
USA: FREE Ground ShippingHP 1620-48G Switch
#JG914A
List Price: $599.00
Our Price: $420.00

More pricing below, click here!

Overview:

The HP 1620 Gigabit Switch Series is an entry-level, smart-managed switch ideal for small businesses looking for basic network features to enhance network performance but without the added complexity and cost of more advanced switches. Part of the HPE OfficeConnect portfolio, these switches are plug-and-play out of the box and an intuitive Web GUI provides ease of access to fine tune switch operation, if necessary.

The HP 1620 Gigabit Switch Series consists of 8-, 24-, and 48-port models that can be rack mounted. Customizable features include VLANs, IEEE802.1p QoS and IGPM Snooping.

What's new:

  • Entry-level smart-managed Gigabit switching without the added cost or complexity.
  • 8-, 24- and 48-port models plug-and-play out of the box.
  • Intuitive Web interface to fine tune switch operation if needed.
  • 8- and 24-port models are fanless for quiet operation.
  • VLANs, QoS, and IGMP snooping for better network performance.

Features & Benefits:

Simple Deployment and Management:

The HP 1620 Switch Series are entry-level, smart-managed switches ideal for small businesses that deliver plug-n-play out of the box. No device configurations are needed to get up and running at gigabit speeds.

An intuitive Web interface provides access to fine tune network performance, if necessary.

Auto-speed negotiation automatically selects individual port speed depending on client capabilities without the need for manual intervention.

All models come with internal power supplies removing the need to manage external power adapters and can be rack mounted with the included hardware. The 8-port model can be deployed on the desktop, wall or rack mounted.

Enhance Network Performance:

The HP 1620 Switch Series includes VLAN support to provide network traffic and resource segregation for additional security and better network performance.

IEEE 802.1p QoS and IGMP Snooping prioritizes traffic and reduces unnecessary broadcast of multicast traffic for efficient network utilization.

Peace of Mind:

HP Limited Lifetime Warranty 2.0 provides next day advance hardware replacement (in most countries), free three year 24x7 phone support and lifetime business day phone and email support for as long as you own the product.

The switch series utilizes Energy Efficient Ethernet for lower power consumption.

Specifications:


  HP 1620-8G HP 1620-24G HP 1620-48G
Ports

  • 8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • 1 RJ-45 console port to access limited CLI port
  • 24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • 1 RJ-45 console port to access limited CLI port
  • 48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
  • 1 RJ-45 console port to access limited CLI port
Physical characteristics
Dimensions

10.47(w) x 6.38(d) x 1.73(h) in (26.59 x 16.21 x 4.39 cm) (1U height)

17.32(w) x 6.81(d) x 1.73(h) in (43.99 x 17.3 x 4.39 cm) (1U height) 17.32(w) x 9.37(d) x 1.73(h) in (43.99 x 23.8 x 4.39 cm)
Weight 2.2 lb (1 kg) 4.85 lb (2.2 kg) 7.28 lb (3.3 kg)
Memory and processor MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 4.1 Mb MIPS @ 500 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 4.1 Mb MIPS @ 650 MHz, 32 MB flash, 128 MB SDRAM; packet buffer size: 12 Mb
Mounting Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included), wall mount Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included) Mounts in an EIA standard 19-inch telco rack or equipment cabinet (hardware included)
Performance
100 Mb Latency < 7 µs < 7 µs < 7 µs
1000 Mb Latency < 5 µs < 5 µs < 5 µs
Throughput up to 11.9 Mpps (64-byte packets) up to 35.7 Mpps (64-byte packets) up to 71.4 Mpps (64-byte packets)
Switching capacity 48 Gbps 48 Gbps 96 Gbps
MAC address table size 8192 entries 8192 entries 16384 entries
Reliability
MTBF (years) 138.89 123.46 81.30
Environment
Operating temperature 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C) 32°F to 104°F (0°C to 40°C)
Operating relative humidity 5% to 95% @ 104°F (40°C), noncondensing 5% to 95%, noncondensing 5% to 95%, noncondensing
Non-Operating temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Non-Operating relative humidity 5% to 95%, noncondensing 5% to 95%, noncondensing 5% to 95%, noncondensing
Altitude up to 16,404 ft (5 km) up to 16,404 ft (5 km) up to 16,404 ft (5 km)
Acoustic No Fan No Fan Power: 49.7 dB, Pressure: 49.7 dB; ISO 7779
Electrical characteristics
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Maximum heat dissipation     204 BTU/hr (215.22 kJ/hr)
Voltage 100 - 240 VAC 100 - 240 VAC 100 - 240 VAC
Current 0.5 A 0.4/0.3 A 0.9/0.5 A
Maximum power rating 7 W 15 W 28.2 W
Notes Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Certifications
Safety IEC 60950-1; EN 60950-1; CSA 22.2 60950-1; UL 60950-1 2nd Edition IEC 60950-1; EN 60950-1; CSA 22.2 60950-1; UL 60950-1 2nd Edition IEC 60950-1; EN 60950-1; CSA 22.2 60950-1; UL 60950-1 2nd Edition
Emmissions FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; EN 55024; EN 61000-3-2 2000, 61000-3-3; ICES-003 Class A
Services

Refer to the HP website for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Standards and Protocols (applies to all products in series)
General protocols
  • IEEE 802.1D MAC Bridges
  • IEEE 802.1p Priority
  • IEEE 802.1Q VLANs
  • IEEE 802.3 Type 10BASE-T
  • IEEE 802.3ab 1000BASE-T
  • IEEE 802.3ad Link Aggregation Control Protocol (LACP)
  • IEEE 802.3az Energy Efficient Ethernet
  • IEEE 802.3i 10BASE-T
  • IEEE 802.3x Flow Control

Documentation:

Download the HP 1620 Switch Series Datasheet (PDF).

Pricing Notes:

HP Smart Web Managed Switches
HP 1620 Switch
USA: FREE Ground ShippingHP 1620-8G Switch
#JG912A
List Price: $129.00
Special: $99.00
USA: FREE Ground ShippingHP 1620-24G Switch
#JG913A
List Price: $299.00
Our Price: $210.00
USA: FREE Ground ShippingHP 1620-48G Switch
#JG914A
List Price: $599.00
Our Price: $420.00
