HP 3100 EI Switch Series
Designed for enterprise networks demanding high security and intelligence

HP 3100 EI Switch Series

HP Switches for Campus/Branch LAN Access
HP 3100 EI Switch Series

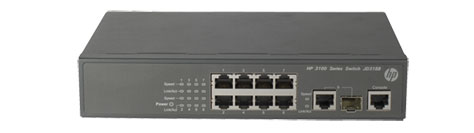

3100-8 V2 EI Switch #JD318B
List Price: $485.00
Our Price: $378.00

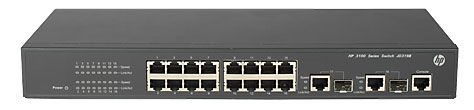

3100-16 V2 EI Switch #JD319B
List Price: $736.00
Our Price: $574.00

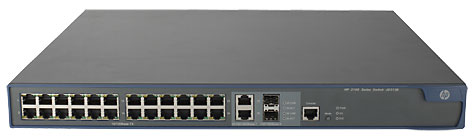

3100-24-PoE v2 EI Switch #JD313B
List Price: $1,583.00
Our Price: $1,234.00

Click here to jump to more pricing!

Overview:

HP 3100 EI series switches are Layer 2 Ethernet switches designed for enterprise networks demanding high security and intelligence. They provide 10/100 Mbps downlink and 1000 Mbps uplink Ethernet ports, and serve as access devices for 100 Mbps-to-desktop applications in enterprise networks. In metropolitan area networks or various industry networks, they connect end users or aggregate client devices with 10/100 Mbps connections, converging at a higher-capacity switch with 1000 Mbps interfaces. Features include advanced Quality of Service (QoS), rate limiting, QinQ (virtual LAN [VLAN]/VPN), SSHv2, Multicast VLAN Registration (MVR), Virtual Cable Tester (VCT), HGMP V2, GARP VLAN Registration Protocol (GVRP), access control list (ACL), media access control (MAC)-IP-port binding, Endpoint Admission Defense, voice and protocol-based VLAN, Internet Group Management Protocol snooping, and Power over Ethernet (PoE).

  • Comprehensive security control policies
  • High reliability with improved backup redundancy
  • Simplified deployment and ease of use
  • Highly expandable and highly reliable
  • Diversified management modes and maintenance

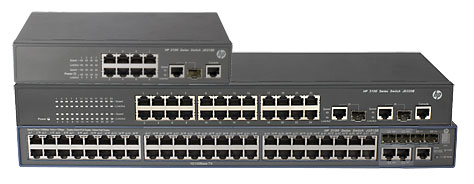

Images:


Features & Benefits:

Quality of Service (QoS)

  • Broadcast control — allows limitation of broadcast traffic rate to cut down on unwanted network broadcast traffic
  • Advanced classifier-based QoS — classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis
  • Powerful QoS feature — supports the following congestion actions: strict priority queuing (SP), weighted round robin (WRR) queuing, and SP+WRR
  • Traffic policing — supports Committed Access Rate (CAR) and line rate

Management

  • Friendly port names — allow assignment of descriptive names to ports
  • Remote configuration and management — is available through a secure Web browser or a CLI
  • Manager and operator privilege levels — enable read-only (operator) and read/write (manager) access on CLI and Web browser management interfaces
  • Command authorization — leverages HWTACACS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit trail
  • Secure Web GUI — provides a secure, easy-to-use graphical interface for configuring the module via HTTPS
  • Multiple configuration files — can be stored to the flash image
  • Complete session logging — provides detailed information for problem identification and resolution
  • SNMPv1, v2c, and v3 — facilitate centralized discovery, monitoring, and secure management of networking devices
  • Remote monitoring (RMON) — uses standard SNMP to monitor essential network functions; supports events, alarm, history, and statistics group plus a private alarm extension group
  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP) — advertises and receives management information from adjacent devices on a network, facilitating easy mapping by network management applications
  • Management VLAN — segments traffic to and from management interfaces, including CLI/telnet, a Web browser interface, and SNMP
  • Local and Remote Intelligent Mirroring — mirror traffic from a switch port to a local or remote switch port anywhere on the network; mirror ACL-selected traffic to a local switch port
  • Device Link Detection Protocol (DLDP) — monitors a cable between two switches and shuts down the ports on both ends if the cable is broken, preventing network problems such as loop
  • Troubleshooting — ingress and egress port monitoring enable network problem solving; virtual cable tests provide visibility into cable problems
  • Stacking capability — single IP address management for a stack of up to 16 switches

Connectivity

  • NEW IPv6 (on v2 products)
    • Telnet v6 — to allow IPv6 management
    • DNSv6 Client — for IPv6 host management
    • SNMPv6 — for IPv6 switch management
    • DHCPv6 Client — for automatic IPv6 address configuration of a switch
  • Auto-MDIX — automatically adjusts for straight-through or crossover cables on all 10/100 and 10/100/1000 ports
  • Flow control — provides back pressure using standard IEEE 802.3x, reducing congestion in heavy traffic situations
  • Gigabit Ethernet uplinks — are dual-personality ports for either 10/100/1000 or mini-GBIC SFP connectivity for increased connectivity flexibility
  • IEEE 802.3af Power over Ethernet (PoE) — provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and security cameras
  • Ethernet OAM (IEEE 802.3ah) — operations, administration and maintenance (OAM) management capability detects data link layer problems that occurred in the "last mile"; monitors the status of the link between the two devices

Performance

  • Hardware-based wire-speed access control lists (ACLs) — feature-rich ACL implementation (TCAM based) helps provide high levels of security and ease of administration without impacting network performance
  • Gigabit Ethernet interface — provides a connection to the network that eliminates the network as a bottleneck

Resiliency and high availability

  • Separate data and control paths — increase security and performance
  • External redundant power supply — provides high reliability
  • Smart link — allows 50 ms failover between links
  • Spanning Tree/MSTP, RSTP — provides redundant links while preventing network loops
  • Port trunking — provides higher switch-to-switch throughput and link-level redundancy, with support for standards-based link aggregation (IEEE 802.3ad); supports up to 13 trunks, each with up to 8 links (ports) per trunk
  • Device Link Detection Protocol (DLDP) — monitors link connectivity and shuts down ports at both ends if unidirectional traffic is detected, preventing loops in STP-based networks

Layer 2 switching

  • NEW PVST+ on v2 products — provides greater interoperability
  • 8K MAC addresses — provide access to many Layer 2 devices
  • VLAN support and tagging — supports the IEEE 802.1Q, with 4,094 simultaneous VLAN IDs; supports port-based VLANs, MAC-based VLANs, and protocol-based VLANs
  • GARP VLAN Registration Protocol — allows automatic learning and dynamic assignment of VLANs
  • IEEE 802.1ad QinQ and Selective QinQ — increase the scalability of an Ethernet network by providing a hierarchical structure; connect multiple LANs on a high-speed campus or metro network
  • Gigabit Ethernet port aggregation — allows grouping of ports to increase overall data throughput to a remote device
  • Internet Group Management Protocol (IGMP) and Multicast Listener Discovery (MLD) protocol snooping — effectively control and manage the flooding of multicast packets in a Layer 2 network

Layer 3 services

  • Address Resolution Protocol (ARP) — determines the MAC address of another IP host in the same subnet
  • Dynamic Host Configuration Protocol (DHCP) — simplifies the management of large IP networks and supports client and server
  • Loopback interface address — defines an address in Routing Information Protocol (RIP) and Open Standard Path First (OSPF), improving diagnostic capability

Security

  • Access control lists (ACLs) — provide IP Layer 2 to Layer 4 traffic filtering; support global ACL, VLAN ACL, and IPv6 ACL
  • Multiple user authentication methods
    • IEEE 802.1X — is an industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a RADIUS server
    • Web-based authentication — is similar to IEEE 802.1X and provides a browser-based environment to authenticate clients that do not support the IEEE 802.1X supplicant
    • MAC-based authentication — authenticates the client with the RADIUS server based on the client's MAC address
  • Identity-driven security and access control
    • Per-user ACLs — permits or denies user access to specific network resources based on user identity and time of day, allowing multiple types of users on the same network to access specific network services without risking network security or allowing unauthorized access to sensitive data
    • Automatic VLAN assignment — automatically assigns users to the appropriate VLAN based on their identities
  • Secure management access — securely encrypts all access methods (CLI, GUI, or MIB) through SSHv2, SSL, and/or SNMPv3
  • Secure FTP — allows secure file transfer to and from the switch; protects against unwanted file downloads or unauthorized copying of a switch configuration file
  • Guest VLAN — similar to IEEE 802.1X, it provides a browser-based environment to authenticated clients
  • Endpoint Admission Defense (EAD) — provides security policies to users accessing a network
  • Port security — allows access only to specified MAC addresses, which can be learned or specified by the administrator
  • Port isolation — secures and adds privacy, and prevents malicious attackers from obtaining user information
  • STP BPDU port protection — blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks
  • STP Root Guard — protects the root bridge from malicious attacks or configuration mistakes
  • DHCP protection — blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks
  • Dynamic ARP protection — blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data
  • IP Source Guard — filters packets on a per-port basis, which prevents illegal packets from being forwarded
  • RADIUS/HWTACACS — eases switch management security administration by using a password authentication server

Convergence

  • IEEE 802.1AB Link Layer Discovery Protocol (LLDP) — is an automated device discovery protocol that provides easy mapping of network management applications
  • LLDP-MED — is a standard extension that automatically configures network devices, including LLDP-capable IP phones
  • LLDP-CDP compatibility — receives and recognizes CDP packets from Cisco's IP phones for seamless interoperation
  • IEEE 802.3af Power over Ethernet — provides up to 15.4 W per port to PoE-powered devices such as IP phones, wireless access points, and video cameras
  • PoE allocations — support multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user specified) to allocate PoE power for more efficient energy savings
  • Voice VLAN — automatically assigns VLAN and priority for IP phones, simplifying network configuration and maintenance
  • Multicast VLAN — allows multiple VLANs to receive the same IPv4 or IPv6 multicast traffic, lessening network bandwidth demand by reducing or eliminating multiple streams to each VLAN
  • IGMP/MLD snooping — effectively controls and manages the flooding of multicast packets in a Layer 2 network

Device support

  • Cisco prestandard PoE support — detects and provides power to Cisco's prestandard PoE devices such as wireless LAN access points and IP phones

Flexibility

  • Fanless design — enables quiet operation for deployment in open spaces (selected models)

Additional information

  • Green initiative support — provides support for RoHS and WEEE regulations
  • Green IT and power — uses the latest advances in silicon development and shuts off unused ports to improve power efficiency

Warranty and support

  • Lifetime warranty — for as long as you own the product with advance replacement and next-business-day delivery (available in most countries)†
  • Electronic and telephone support — limited electronic and telephone support is available from HP; to reach our support centers, refer to www.hp.com/networking/contact-support; for details on the duration of support provided with your product purchase, refer to www.hp.com/networking/warrantysummary
  • Software releases — to find software for your product, refer to www.hp.com/networking/support; for details on the software releases available with your product purchase, refer to www.hp.com/networking/warrantysummary

Specifications:


  3100-8 3100-16 3100-24
Part Number HP 3100-8 V2 EI Switch (JD318B) HP 3100-16 V2 EI Switch (JD319B) HP 3100-24 V2 EI Switch (JD320B)
Ports
  8 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Duplex: half or full

1 dual-personality port

auto-sensing 10/100/1000BASE-T or SFP

1 RJ-45 serial console port

16 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Duplex: half or full

2 dual-personality ports

auto-sensing 10/100/1000BASE-T or SFP

1 RJ-45 serial console port

24 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Duplex: half or full

2 dual-personality ports

auto-sensing 10/100/1000BASE-T or SFP

1 RJ-45 serial console port

Physical characteristics
  9.06(w) x 6.3(d) x 1.72(h) in (23.01 x 16 x 4.37 cm) (1U height) 14.17(w) x 6.3(d) x 1.72(h) in (35.99 x 16 x 4.37 cm) (1U height) 17.32(w) x 6.3(d) x 1.72(h) in (43.99 x 16 x 4.37 cm) (1U height)
Weight 3.97 lb (1.8 kg) 5.51 lb (2.5 kg) 7.72 lb (3.5 kg)
Memory and processor
  128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB 128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB 128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB
Mounting
  Requires angle mounting set if rack mounted (not included) Requires angle mounting set if rack mounted (not included) Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Performance
100 Mb Latency < 6 µs (64-byte packets) < 6 µs (64-byte packets)
1000 Mb Latency < 5 µs (64-byte packets) < 5 µs (64-byte packets) < 6 µs (64-byte packets)
10 Gbps Latency     < 5 µs (64-byte packets)
Throughput up to 2.6 million pps up to 5.3 million pps up to 6.5 million pps
Routing/Switching capacity 3.6 Gbps 7.2 Gbps 8.8 Gbps
Routing table size 16 entries 16 entries 16 entries
MAC address table size 8192 entries 8192 entries 8192 entries
Environment
Operating temperature 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing 10% to 90%, noncondensing 10% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 95%, noncondensing 5% to 95%, noncondensing 5% to 95%, noncondensing
Acoustic N/A (fanless) N/A (fanless) N/A (fanless)
Electrical characteristics
Maximum heat dissipation 31 BTU/hr 41 BTU/hr 44 BTU/hr
Voltage 100-240 VAC 100-240 VAC 100-240 VAC
Maximum power rating 9 W 12 W 13 W
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Notes Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1AnatelULARGOSTEN 60950-1/A11FDA 21 CFR Subchapter JNOMROHS Compliance UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1AnatelULARGOSTEN 60950-1/A11FDA 21 CFR Subchapter JNOMROHS Compliance UL 60950NOM-019-SCFI MexicoEN 60950: 2000, ZB and ZC DeviationsIEC 60950: 1999, Corr Feb 2000, all national deviationsAS/NZS 60950: 2000 Australia, Russian GOST Safety Approval

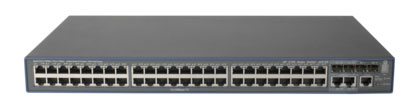

  3100-24-PoE 3100-48
Part Number HP 3100-24-PoE v2 EI Switch (JD313B) HP 3100-48 V2 Switch (JG315A)
Ports
  24 autosensing 10/100 PoE ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3af PoE)

Duplex: half or full

2 dual-personality ports

auto-sensing 10/100/1000BASE-T or SFP

1 RJ-45 serial console port

48 RJ-45 autosensing 10/100 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX)

Duplex: half or full

2 SFP dual-personality 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

4 SFP fixed Gigabit Ethernet SFP ports

1 RJ-45 serial console port

Physical characteristics
  17.32(w) x 16.54(d) x 1.72(h) in (44 x 42 x 4.36 cm) (1U height) 17.32(w) x 10.24(d) x 1.72(h) in (43.99 x 26.01 x 4.37 cm) (1U height)
Weight 14.33 lb (6.5 kg) 7.72 lb (3.5 kg)
Memory and processor
  128 MB SDRAM, 16 MB flash; packet buffer size: 384 KB 256 MB SDRAM, 128 MB flash; packet buffer size: 4 MB
Mounting
  Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included) Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included)
Performance
100 Mb Latency < 6 µs (64-byte packets) < 6 µs (64-byte packets)
1000 Mb Latency < 5 µs (64-byte packets) < 5 µs (64-byte packets)
Throughput up to 6.5 million pps 13.1 million pps
Routing/Switching capacity 8.8 Gbps 17.6 Gbps
Routing table size   32 entries
MAC address table size 8192 entries 32000 entries
Environment
Operating temperature 32°F to 113°F (0°C to 45°C) 32°F to 113°F (0°C to 45°C)
Operating relative humidity 10% to 90%, noncondensing 10% to 90%, noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 5% to 95%, noncondensing 5% to 95%, noncondensing
Acoustic Low-speed fan: 42.2 dB, High-speed fan: 51.5 dB Low-speed fan: 43.2 dB, High-speed fan: 50.0 dB
Electrical characteristics
Maximum heat dissipation 1586 BTU/hr (1673.23 kJ/hr) 140 BTU/hr
Voltage 100-240 VAC 100-240 VAC
DC voltage -52 to -56 VDC
Maximum power rating 465 W 41 W
PoE power 370 W
Frequency 50/60 Hz 50/60 Hz
Notes Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).
With DC input, the maximum power is 400 W; PoE power is 370 W.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  UL 60950-1CAN/CSA 22.2 No. 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1AnatelULARGOSTEN 60950-1/A11FDA 21 CFR Subchapter JNOMROHS Compliance UL 60950-1EN 60825-1 Safety of Laser Products-Part 1EN 60825-2 Safety of Laser Products-Part 2IEC 60950-1CAN/CSA-C22.2 No. 60950-1EN 60950-1/A11FDA 21 CFR Subchapter JROHS Compliance

Services & Support:


HP Networking Services - Services that add value to your business:

The warranties on HP Networking products provide a robust foundation for ongoing network support, but many customers have advanced support needs. Today's enterprise businesses, regardless of their size, are under increasing pressure to reduce the cost and complexity of supporting their network infrastructures. Demand for new services from businesses and their end users is constantly increasing. HP offers an affordable, comprehensive portfolio of networking services for organizations of all sizes. HP has a unique services advantage you can benefit from, and HP is the only vendor in the IT industry that can provide integrated and consistent support for your entire technology infrastructure worldwide, including networking, servers and storage, and imaging and printing, as well as desktop and mobile computing, to help you grow your business with expert support that is affordable, personal, and scaled to your needs. HP Networking's implementation and design centers simplify your network planning, while HP Technology and Enterprise Services deliver choice and flexibility.

HP provides a full range of custom services to meet the end-to-end networking needs of our customers. HP Network Lifecycle Services form the core foundation of network consulting, assessments, planning, design, integration, deployment, and management. They are available as standalone services or can be crafted to deliver solutions across the services portfolio, spanning network performance, network security and risk management, global deployment, data center networking, wireless LAN/mobility, and Unified Communications and Collaboration.

Documentation:

PDF File
Download the HP 3100 EI Switch Series Datasheet (PDF).

HP Switches for Campus/Branch LAN Access
HP 3100 EI Switch Series
3100-8 V2 EI Switch #JD318B
List Price: $485.00
Our Price: $378.00
3100-16 V2 EI Switch #JD319B
List Price: $736.00
Our Price: $574.00
3100-24-PoE v2 EI Switch #JD313B
List Price: $1,583.00
Our Price: $1,234.00
