HP 3500 yl Switch Series
Fixed Port L3 Managed Ethernet Switches

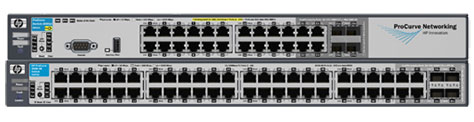

HP 3500 yl Switch Series

HP Switches for Campus/Branch LAN Access
HP 3500 yl Switch
USA: FREE Ground Shipping3500-24G-PoE+ yl Switch
#J9310A
List Price: $3,899.00
Our Price: $2,835.00
USA: FREE Ground Shipping3500-48G-PoE+ yl Switch
#J9311A
List Price: $7,199.00
Our Price: $5,239.00

More pricing below, click here!

Overview:

The HP 3500 yl Switch Series provides performance and ease of use for enterprise edge and branch office deployments that require PoE+. Based on a HP Networking ASIC, the 3500 yl Switch Series has low latency with increased packet buffering and an optional module for 10GbE ports.

It has a robust Layer 3 feature set with IPv4 BGP, policy based routing, and IPv4/IPv6 OSPF, which can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform. Software-defined Network (SDN) ready with support for OpenFlow.

What's new:

  • Layer 3 switch with high performance and ease of use for enterprise edge and branch offices.
  • 24 and 48 port Gigabit switches with PoE+.
  • Modular 10GbE uplinks.
  • As many as 24 ports of PoE+ with external EPS/RPS.
  • Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support.

Images:

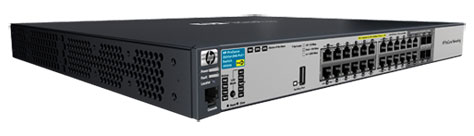

HP 3500-24G-PoE+ yl Switch (J9310A)

HP 3500-24G-PoE+ yl Switch (J9310A)

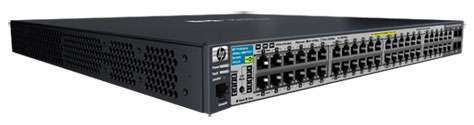

HP 3500-48G-PoE+ yl Switch (J9311A)

HP 3500-48G-PoE+ yl Switch (J9311A)

Features & Benefits:



Specifications:


  3500-48G-PoE+ yl 3500-24G-PoE+ yl
Part Number HP 3500-48G-PoE+ yl Switch (J9311A) HP 3500-24G-PoE+ yl Switch (J9310A)
Ports
  1 open module slot

44 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Media Type: Auto-MDIX

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

1 RJ-45 serial console port

4 dual-personality ports

each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10BASE-T; IEEE 802.3u Type 100BASE-TX; IEEE 802.3ab 1000BASE-T Gigabit Ethernet) with PoE or an open mini-GBIC slot (for use with mini-GBIC transceivers)

Supports a maximum of 4 10-GbE ports, with optional module

1 open module slot

20 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Media Type: Auto-MDIX

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

1 RJ-45 serial console port

4 dual-personality ports

each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type 10BASE-T; IEEE 802.3u Type 100BASE-TX; IEEE 802.3ab 1000BASE-T Gigabit Ethernet) with PoE or an open mini-GBIC slot (for use with mini-GBIC transceivers)

Supports a maximum of 4 10-GbE ports, with optional module

Physical characteristics
  17.44(w) x 16.93(d) x 1.73(h) in (44.3 x 43.0 x 4.4 cm) (1U height) 17.44(w) x 15.43(d) x 1.73(h) in (44.3 x 39.2 x 4.4 cm) (1U height)
Weight 15.54 lb (7.05 kg) 13.86 lb (6.29 kg)
Memory and processor
10G module ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM ARM9 @ 200 MHz; packet buffer size: 36 Mb QDR SDRAM
Management module Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM Stackable memory and processor: Freescale PowerPC 8540 @ 666 MHz, 4 MB flash, 128 MB compact flash, 256 MB DDR SDRAM
Mounting
  Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
1000 Mb Latency < 3.4 µs (FIFO 64-byte packets) < 3.4 µs (FIFO 64-byte packets)
10 Gbps Latency < 2.1 µs (FIFO 64-byte packets) < 2.1 µs (FIFO 64-byte packets)
Throughput up to 111.5 million pps up to 75.7 million pps
Routing/Switching capacity 149.8 Gbps 101.8 Gbps
Switch fabric speed 153.6 Gbps 105.6 Gbps
Routing table size 10000 entries 10000 entries
MAC address table size 64000 entries 64000 entries
Environment
Operating temperature 32°F to 131°F (0°C to 55°C); 32°F to 104°F (40°C) when used with any SFP+ 10-GbE 32°F to 131°F (0°C to 55°C); 32°F to 104°F (40°C) when used with any X2 10-GbE
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 95% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing
Altitude up to 15,000 ft (4.6 km) up to 15,000 ft (4.6 km)
Acoustic Power: 58.0 dB, Pressure: 42.0 dB ISO 7779, ISO 9296 Power: 57.0 dB, Pressure: 40.5 dB ISO 7779, ISO 9296
Electrical characteristics

Description The switch automatically adjusts to any voltage between 100-127 and 200-240 V with either 50 or 60 Hz. The switch automatically adjusts to any voltage between 100-127 and 200-240 V with either 50 or 60 Hz.
Maximum heat dissipation 1144 BTU/hr (1206.9 kJ/hr) 865 BTU/hr (912.9 kJ/hr)
Voltage 100-127/200-240 VAC 100-127/200-240 VAC
Current 7.3/3.3 A 6.6/3.0 A
Idle power 132 W 94 W
Maximum power rating 638 W 616 W
PoE power 398 W 398 W
Frequency 50/60 Hz 50/60 Hz
Notes Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
The amount of PoE power delivered is dependent on the number and type of power supplies connected. The switches offer optional external power supplies (EPS) for maximum PoE power.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
The amount of PoE power delivered is dependent on the number and type of power supplies connected. The switches offer optional external power supplies (EPS) for maximum PoE power.
Safety
  CSA 22.2 No. 60950UL 60950IEC 60950EN 60950 CSA 22.2 No. 60950UL 60950IEC 60950EN 60950
Notes
  Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C). Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C).


Services & Support:

HP Networking Services - Services that add value to your business:

The warranties on HP Networking products provide a robust foundation for ongoing network support, but many customers have advanced support needs. Today's enterprise businesses, regardless of their size, are under increasing pressure to reduce the cost and complexity of supporting their network infrastructures. Demand for new services from businesses and their end users is constantly increasing. HP offers an affordable, comprehensive portfolio of networking services for organizations of all sizes. HP has a unique services advantage you can benefit from, and HP is the only vendor in the IT industry that can provide integrated and consistent support for your entire technology infrastructure worldwide, including networking, servers and storage, and imaging and printing, as well as desktop and mobile computing, to help you grow your business with expert support that is affordable, personal, and scaled to your needs. HP Networking's implementation and design centers simplify your network planning, while HP Technology and Enterprise Services deliver choice and flexibility.

HP provides a full range of custom services to meet the end-to-end networking needs of our customers. HP Network Lifecycle Services form the core foundation of network consulting, assessments, planning, design, integration, deployment, and management. They are available as standalone services or can be crafted to deliver solutions across the services portfolio, spanning network performance, network security and risk management, global deployment, data center networking, wireless LAN/mobility, and Unified Communications and Collaboration.

Documentation:

Download the HP 3500 yl Switch Series Datasheet (PDF).
