HP 3800 Switch Series
Fixed Port L3 Managed Ethernet Switches

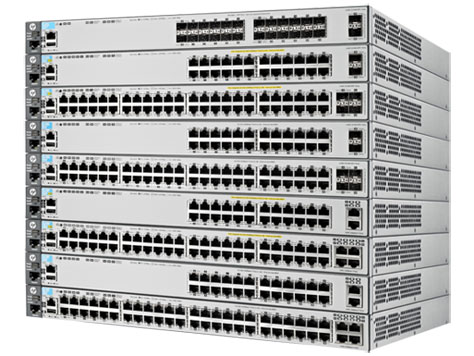

HP 3800 Switch Series

HP Switches for Campus/Branch LAN Access
HP 3800 Switch
USA: FREE Ground Shipping3800-24G-2SFP+ Switch
#J9575A
List Price: $4,969.00
Our Price: $3,603.00
USA: FREE Ground Shipping3800-24G-2XG Switch
#J9585A
List Price: $5,469.00
Our Price: $3,988.00
USA: FREE Ground Shipping3800-24G-PoE+-2SFP+ Switch
#J9573A
List Price: $5,519.00
Our Price: $4,002.00
USA: FREE Ground Shipping3800-24G-PoE+-2XG Switch
#J9587A
List Price: $6,019.00
Our Price: $4,448.00
USA: FREE Ground Shipping3800-24SFP-2SFP+ Switch
#J9584A
List Price: $8,299.00
Our Price: $6,057.00
USA: FREE Ground Shipping3800-48G-4SFP+ Switch
#J9576A
List Price: $7,419.00
Our Price: $5,352.00
USA: FREE Ground Shipping3800-48G-4XG Switch
#J9586A
List Price: $8,419.00
Our Price: $6,127.00
USA: FREE Ground Shipping3800-48G-PoE+-4SFP+ Switch
#J9574A
List Price: $8,719.00
Our Price: $6,315.00
USA: FREE Ground Shipping3800-48G-PoE+-4XG Switch
#J9588A
List Price: $9,719.00
Our Price: $7,165.00

More pricing below, click here!

Overview:

The HP 3800 Switch Series provides performance, resiliency, flexibility, and ease of use for enterprise edge, SMB and branch office deployments. Based on a powerful HP Networking ASIC, the switch has low latency, increased packet buffering, and adaptive power consumption.

Mesh-stacking technology delivers modular chassis-like resiliency in stackable1U form factor. The HP 3800 Switch Series has a robust Layer 3 feature set with IPv6, IPv4 BGP, policy based routing, and OSPF.

It can be seamlessly managed with HP Intelligent Management Center (IMC) and is SDN ready with OpenFlow support.

What's new:

  • Layer 3 switch with high-performance meshed-stacking, resiliency, and ease of use for enterprise edge, SMB and branch offices.
  • Mesh-stacking with up to 5 switches or up to 10 with ring topology.
  • 10GbE uplinks (SFP+, 10GBASE-T), PoE+, and modular stacking.
  • Up to 1080 W PoE+.
  • Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support.

Features & Benefits:

Performance, Resiliency and SDN Ready for the Campus Edge

  • The HP 3800 Switch Series provides performance, resiliency, flexibility, and ease of use for enterprise edge, SMB and branch office deployments.
  • Full Layer 3 switch series for flexible deployment with 24 or 48 Gigabit Ethernet ports plus convenient built-in 10GbE uplinks (10GBASE-T or SFP+), PoE+, Energy Efficient Ethernet, and hot-swappable, redundant power supplies.
  • Mesh-stacking technology delivers modular chassis-like resiliency in stackable1U form factor with optional stacking modules.
  • License free software with advanced Layer 2 and 3 feature set including IPv4 BGP, policy based routing, IPv4/IPv6 OSPF, and robust QoS.
  • Software-defined Network (SDN) ready with OpenFlow 1.3 support for future proofing your network.

Mesh Stacking and Power at the Edge

  • The HP 3800 Switch Series uses a powerful HP Networking ASIC providing very low latency, increased packet buffering, and adaptive power consumption.
  • Meshed-stacking technology delivers high-performance stacking with up to 336 Gbps of throughput and increased resiliency.
  • As many as five 3800 switches can be stacked in a mesh topology and then an additional five can be arranged in a ring.
  • Selectable queue configurations enables increased performance by selecting the number of queues and associated memory buffering that best meet the requirements of the network applications.

Resiliency and High Availability

  • The HP 3800 Switch Series supports virtual router redundancy protocol (VRRP) allowing groups of two routers to dynamically back each other up to create highly available router environments in both IPv4 and IPv6 networks.
  • Uninterrupted switching and routing for improved support of applications such as unified communications and enhanced L3 high availability.
  • Dual hot-swappable power supplies provide uninterrupted power and allow swapping of modules on the fly to reduce impact on the network availability. Provides up to 1080 W PoE+ power.

Robust Security and Quality of Service (QoS)

  • The HP 3800 Switch Series includes a robust set of security and QoS features to build a network that meets ever-changing corporate policies and compliances.
  • Flexible authentication options include Local MAC, 802.1X, MAC and Web modes for greater policy-driven application security.
  • Advanced distributed denial of service (DDOS) protection-such as DHCP Snooping, IP Source Guard, and ARP Protection-flexible traffic control programs, policy-based routing, QoS, and ACL, manage end-to-end application priorities.
  • Powerful multilevel-access security controls, such as varying security management login, RADIUS/TACACS+, and SSH increase security and control change management access.
  • The HP 3800 Switch Series can be seamlessly managed with HP Intelligent Management Center (IMC) software to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.

Specifications:


  3800-24G-PoE+-2SFP+ 3800-48G-PoE+-4SFP+ 3800-24G-2SFP+
Part Number HP 3800-24G-PoE+-2SFP+ Switch (J9573A) HP 3800-48G-PoE+-4SFP+ Switch (J9574A) HP 3800-24G-2SFP+ Switch (J9575A)
Included accessories
  1 HP 3800 Switch Fan Tray (J9582A)

1 HP X312 1000W 100-240VAC to 54VDC Power Supply (J9580A)

1 HP 3800 Switch Fan Tray (J9582A)

1 HP X312 1000W 100-240VAC to 54VDC Power Supply (J9580A)

1 HP 3800 Switch Fan Tray (J9582A)

1 HP X311 400W 100-240VAC to 12VDC Power Supply (J9581A)

Ports
  24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

Power supplies
  2 power supply slots

1 minimum power supply required

includes: 1 x J9580A (HP X312 1000W 100-240VAC to 54VDC Power Supply)

2 power supply slots

1 minimum power supply required

includes: 1 x J9580A (HP X312 1000W 100-240VAC to 54VDC Power Supply)

2 power supply slots

1 minimum power supply required

includes: 1 x J9581A (HP X311 400W 100-240VAC to 12VDC Power Supply)

Fan tray
  includes: 1 x J9582A includes: 1 x J9582A includes: 1 x J9582A
Physical characteristics
  17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height) 17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height) 17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height)
Weight 15.9 lb (7.21 kg) switch chassis with 1 power supply and fan tray installed 16.84 lb (7.64 kg) switch chassis with 1 power supply and fan tray installed 15.26 lb (6.92 kg) switch chassis with 1 power supply and fan tray installed
Memory and processor
Processor HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 18 MB dynamic HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 36 MB dynamic HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 18 MB dynamic
Mounting
  Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
1000 Mb Latency < 2.8 µs (LIFO 64-byte packets) < 2.8 µs (LIFO 64-byte packets) < 2.8 µs (LIFO 64-byte packets)
10 Gbps Latency < 1.9 µs (LIFO 64-byte packets) < 1.9 µs (LIFO 64-byte packets) < 1.9 µs (LIFO 64-byte packets)
Throughput up to 65.4 million pps (64-byte packets) up to 130.9 million pps (64-byte packets) up to 65.4 million pps (64-byte packets)
Switching capacity 88 Gbps 176 Gbps 88 Gbps
Routing table size 10000 entries 10000 entries 10000 entries
MAC address table size 65500 entries 65500 entries 65500 entries
Environment
Operating temperature 32°F to 131°F (0°C to 55°C); max temperature is 45°C when transceivers are installed 32°F to 131°F (0°C to 55°C); max temperature is 45°C when transceivers are installed 32°F to 131°F (0°C to 55°C); max temperature is 45°C when transceivers are installed
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustic Power: 49 dB, Pressure: 33.7 dB Power: 57 dB, Pressure: 41.2 dB Power: 36 dB, Pressure: 26.4 dB
Electrical characteristics
Maximum heat dissipation 434 BTU/hr (457.87 kJ/hr) 635 BTU/hr (669.93 kJ/hr) 434 BTU/hr (457.87 kJ/hr)
Voltage 100-120/200-240 VAC 100-120/200-240 VAC 100-127/200-240 VAC
Current 9.4/7.8 A 9.4/7.8 A 6/3 A
Idle power 70 W 97 W 66 W
Maximum power rating 127 W 186 W 127 W
PoE power 720 W 1080 W
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Notes Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).
With a single power supply at 120 V input, a maximum of 572 W of PoE power is available.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).
With a single power supply at 120 V input, a maximum of 514 W of PoE power is available. With a single power supply at 240 V, a maximum of 814 W of PoE power is available.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825 EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825 EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825
Notes
  Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C). Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C). Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C).

  3800-48G-4SFP+ 3800-24G-2XG 3800-48G-4XG
Part Number HP 3800-48G-4SFP+ Switch (J9576A) HP 3800-24G-2XG Switch (J9585A) HP 3800-48G-4XG Switch (J9586A)
Included accessories
  1 HP 3800 Switch Fan Tray (J9582A)

1 HP X311 400W 100-240VAC to 12VDC Power Supply (J9581A)

1 HP 3800 Switch Fan Tray (J9582A)

1 HP X311 400W 100-240VAC to 12VDC Power Supply (J9581A)

1 HP 3800 Switch Fan Tray (J9582A)

1 HP X311 400W 100-240VAC to 12VDC Power Supply (J9581A)

Ports
  48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 RJ-45 10-GbE ports IEEE 802.3an-2006 Type 10GBASE-T

Duplex: full only

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 RJ-45 10-GbE ports IEEE 802.3an-2006 Type 10GBASE-T

Duplex: full only

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

Power supplies
  2 power supply slots

1 minimum power supply required

includes: 1 x J9581A (HP X311 400W 100-240VAC to 12VDC Power Supply)

2 power supply slots

1 minimum power supply required

includes: 1 x J9581A (HP X311 400W 100-240VAC to 12VDC Power Supply)

2 power supply slots

1 minimum power supply required

includes: 1 x J9581A (HP X311 400W 100-240VAC to 12VDC Power Supply)

Fan tray
  includes: 1 x J9582A includes: 1 x J9582A includes: 1 x J9582A
Physical characteristics
  17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height) 17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height) 17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height)
Weight 16.01 lb (7.26 kg) switch chassis with 1 power supply and fan tray installed 15.81 lb (7.17 kg) switch chassis with 1 power supply and fan tray installed 16.36 lb (7.42 kg) switch chassis with 1 power supply and fan tray installed
Memory and processor
Processor HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 36 MB dynamic HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 18 MB dynamic HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 36 MB dynamic
Mounting
  Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
1000 Mb Latency < 2.8 µs (LIFO 64-byte packets) < 2.8 µs (LIFO 64-byte packets) < 2.8 µs (LIFO 64-byte packets)
10 Gbps Latency < 1.9 µs (LIFO 64-byte packets) < 1.9 µs (LIFO 64-byte packets) < 1.9 µs (LIFO 64-byte packets)
Throughput up to 130.9 million pps (64-byte packets) up to 65.4 million pps (64-byte packets) up to 130.9 million pps (64-byte packets)
Switching capacity 176 Gbps 88 Gbps 176 Gbps
Routing table size 10000 entries 10000 entries 10000 entries
MAC address table size 65500 entries 65500 entries 65500 entries
Environment
Operating temperature 32°F to 131°F (0°C to 55°C); max temperature is 45°C when transceivers are installed 32°F to 131°F (0°C to 55°C) 32°F to 131°F (0°C to 55°C); max temperature is 45°C when SFP+ transceivers are installed
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustic Power: 36 dB, Pressure: 25.4 dB Power: 39 dB, Pressure: 25.5 dB Power: 34 dB, Pressure: 24.5 dB
Electrical characteristics
Maximum heat dissipation 635 BTU/hr (669.93 kJ/hr) 434 BTU/hr (457.87 kJ/hr) 635 BTU/hr (669.93 kJ/hr)
Voltage 100-127/200-240 VAC 100-127/200-240 VAC 100-127/200-240 VAC
Current 6/3 A 6/3 A 6/3 A
Idle power 70 W 70 W 74 W
Maximum power rating 186 W 127 W 186 W
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Notes Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825 EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825 EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825
Notes
  Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C).

  3800-24G-PoE+-2XG 3800-48G-PoE+-4XG 3800-24SFP-2SFP+
Part Number HP 3800-24G-PoE+-2XG Switch (J9587A) HP 3800-48G-PoE+-4XG Switch (J9588A) HP 3800-24SFP-2SFP+ Switch (J9584A)
Included accessories
  1 HP 3800 Switch Fan Tray (J9582A)

1 HP X312 1000W 100-240VAC to 54VDC Power Supply (J9580A)

1 HP 3800 Switch Fan Tray (J9582A)

1 HP X312 1000W 100-240VAC to 54VDC Power Supply (J9580A)

1 HP 3800 Switch Fan Tray (J9582A)

1 HP X311 400W 100-240VAC to 12VDC Power Supply (J9581A)

Ports
  24 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

2 RJ-45 10-GbE ports IEEE 802.3an-2006 Type 10GBASE-T

Duplex: full only

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+)

Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

4 RJ-45 10-GbE ports IEEE 802.3an-2006 Type 10GBASE-T

Duplex: full only

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

24 SFP 100/1000 Mbps ports (IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)

Duplex: 100BASE-TX: half or full; 1000BASE-T: full only

2 fixed 1000/10000 SFP+ ports

1 RJ-45 serial console port

1 RJ-45 out-of-band management port

1 Stacking module slot

Power supplies
  2 power supply slots

1 minimum power supply required

includes: 1 x J9580A (HP X312 1000W 100-240VAC to 54VDC Power Supply)

2 power supply slots

1 minimum power supply required

includes: 1 x J9580A (HP X312 1000W 100-240VAC to 54VDC Power Supply)

2 power supply slots

1 minimum power supply required

includes: 1 x J9581A (HP X311 400W 100-240VAC to 12VDC Power Supply)

Fan tray
  includes: 1 x J9582A includes: 1 x J9582A includes: 1 x J9582A
Physical characteristics
  17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height) 17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height) 17.43(w) x 18.4(d) x 1.7(h) in (44.27 x 46.74 x 4.32 cm) (1U height)
Weight 16.45 lb (7.46 kg) switch chassis with 1 power supply and fan tray installed 17.24 lb (7.82 kg) switch chassis with 1 power supply and fan tray installed 16.01 lb (7.26 kg) switch chassis with 1 power supply and fan tray installed
Memory and processor
Processor HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 18 MB dynamic HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 36 MB dynamic HP ProVision ASIC/ARM @ 350 MHz; Freescale P2020 @ 1200 MHz, 4 GB flash, 2 GB SDRAM; packet buffer size: 18 MB dynamic
Mounting
  Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only Mounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only
Performance
1000 Mb Latency < 2.8 µs (LIFO 64-byte packets) < 2.8 µs (LIFO 64-byte packets) < 2.8 µs (LIFO 64-byte packets)
10 Gbps Latency < 1.9 µs (LIFO 64-byte packets) < 1.9 µs (LIFO 64-byte packets) < 1.9 µs (LIFO 64-byte packets)
Throughput up to 65.4 million pps (64-byte packets) up to 130.9 million pps (64-byte packets) up to 65.4 million pps (64-byte packets)
Switching capacity 88 Gbps 176 Gbps 88 Gbps
Routing table size 10000 entries 10000 entries 10000 entries
MAC address table size 65500 entries 65500 entries 65500 entries
Environment
Operating temperature 32°F to 131°F (0°C to 55°C) 32°F to 131°F (0°C to 55°C); max temperature is 45C when SFP+ transceivers are installed 32°F to 113°F (0°C to 45°C)
Operating relative humidity 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing 15% to 95% @ 104°F (40°C), noncondensing
Nonoperating/Storage temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Nonoperating/Storage relative humidity 15% to 90% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing 15% to 90% @ 149°F (65°C), noncondensing
Altitude up to 10,000 ft (3 km) up to 10,000 ft (3 km) up to 10,000 ft (3 km)
Acoustic Power: 48 dB, Pressure: 32.6 dB Power: 57 dB, Pressure: 41.5 dB Power: 36 dB, Pressure: 25 dB
Electrical characteristics
Maximum heat dissipation 434 BTU/hr (457.87 kJ/hr) 635 BTU/hr (669.93 kJ/hr) 434 BTU/hr (457.87 kJ/hr)
Voltage 100-120/200-240 VAC 100-120/200-240 VAC 100-127/200-240 VAC
Current 9.4/7.8 A 9.4/7.8 A 6/3 A
Idle power 71 W 100 W 55 W
Maximum power rating 127 W 186 W 127 W
PoE power 720 W 1080 W
Frequency 50/60 Hz 50/60 Hz 50/60 Hz
Notes Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).
With a single power supply at 120 V input, a maximum of 572 W of PoE power is available.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
PoE power is the power supplied by the internal power supply. It is dependent on the type and quantity of power supplies and may be supplemented with the use of an external power supply (EPS).
With a single power supply at 120 V input, a maximum of 514 W of PoE power is available. With a single power supply at 240 V input, a maximum of 814 W of PoE power is available.
Idle power is the actual power consumption of the device with no ports connected.
Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
Safety
  EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825 EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825 EN 60950/IEC 60950UL 60950CAN/CSA 22.2 No. 60950EN 60825
Notes
      Supported 1G SFP transceivers are revision "B" or later (product number ends with the letter "B" or later, for example, J9142B, J8177C).

Services & Support:

HP Networking Services - Services that add value to your business:

The warranties on HP Networking products provide a robust foundation for ongoing network support, but many customers have advanced support needs. Today's enterprise businesses, regardless of their size, are under increasing pressure to reduce the cost and complexity of supporting their network infrastructures. Demand for new services from businesses and their end users is constantly increasing. HP offers an affordable, comprehensive portfolio of networking services for organizations of all sizes. HP has a unique services advantage you can benefit from, and HP is the only vendor in the IT industry that can provide integrated and consistent support for your entire technology infrastructure worldwide, including networking, servers and storage, and imaging and printing, as well as desktop and mobile computing, to help you grow your business with expert support that is affordable, personal, and scaled to your needs. HP Networking's implementation and design centers simplify your network planning, while HP Technology and Enterprise Services deliver choice and flexibility.

HP provides a full range of custom services to meet the end-to-end networking needs of our customers. HP Network Lifecycle Services form the core foundation of network consulting, assessments, planning, design, integration, deployment, and management. They are available as standalone services or can be crafted to deliver solutions across the services portfolio, spanning network performance, network security and risk management, global deployment, data center networking, wireless LAN/mobility, and Unified Communications and Collaboration.

Documentation:

Download the HP 3800 Switch Series Datasheet (PDF).

Pricing Notes:

HP Switches for Campus/Branch LAN Access
HP 3800 Switch
USA: FREE Ground Shipping3800-24G-2SFP+ Switch
#J9575A
List Price: $4,969.00
Our Price: $3,603.00
USA: FREE Ground Shipping3800-24G-2XG Switch
#J9585A
List Price: $5,469.00
Our Price: $3,988.00
USA: FREE Ground Shipping3800-24G-PoE+-2SFP+ Switch
#J9573A
List Price: $5,519.00
Our Price: $4,002.00
USA: FREE Ground Shipping3800-24G-PoE+-2XG Switch
#J9587A
List Price: $6,019.00
Our Price: $4,448.00
USA: FREE Ground Shipping3800-24SFP-2SFP+ Switch
#J9584A
List Price: $8,299.00
Our Price: $6,057.00
USA: FREE Ground Shipping3800-48G-4SFP+ Switch
#J9576A
List Price: $7,419.00
Our Price: $5,352.00
USA: FREE Ground Shipping3800-48G-4XG Switch
#J9586A
List Price: $8,419.00
Our Price: $6,127.00
USA: FREE Ground Shipping3800-48G-PoE+-4SFP+ Switch
#J9574A
List Price: $8,719.00
Our Price: $6,315.00
USA: FREE Ground Shipping3800-48G-PoE+-4XG Switch
#J9588A
List Price: $9,719.00
Our Price: $7,165.00
