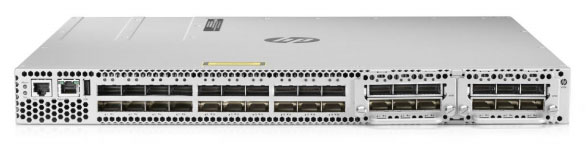

HP Altoline 6700 Switch Series
Fixed Port L3 Managed Ethernet Switches

HP Altoline 6700 Switch Series

HP Data Center Open Networking Switches
HP Altoline 6700 Series
USA: FREE Ground ShippingHP Altoline 6700 32QSFP+ PPC ONIE AC Back-to-Front Switch
#JL115A
Contact us for Pricing!
USA: FREE Ground ShippingHP Altoline 6700 32QSFP+ PPC ONIE AC Front-to-Back Switch
#JL114A
Contact us for Pricing!

More pricing below, click here!

Overview:

The HP Altoline 6700 Switch Series is an open-networking, disaggregated family of low-latency 40GbE data center switches in a 1U form factor. Perfect for deployment in web-scale environments as a 10GbE server access or as a 40GbE spine switches it is optimized for data center hot/cold isles deployments with reversible airflow.

Hardware support for VXLAN is ideal for deployment in multi-tenancy and overlay environments. Take advantage of the streamlined design and ONIE boot loader to deploy a choice of network operating systems with the freedom to select the management and orchestration tools.

What's New:

  • High 40GbE port density and low latency for demanding applications.
  • ONIE boot loader for choice of network OS and easy installation.
  • Open-networking and disaggregated solution for customer choice.
  • VXLAN for efficient network virtualization overlay solutions.
  • 40GbE and redundant fans and power supplies for data center deployments.

Features & Benefits:

Open and Disaggregated Networking for Choice

  • The HP Altoline 6700 Switch Series is an open-networking, disaggregated solution that offers customers choice of hardware platforms and network operating systems (NOS).
  • Includes the Open Network Install Environment (ONIE) loader for easy installation of the network operating system.
  • You have a choice of network OS including Cumulus Networks Linux NOS.
  • Offers a choice of management and orchestration tools from growing ecosystem.

Wire Speed of 40GbE for Scalability and Demanding Applications

  • The HP Altoline 6700 Switch Series provides high density of 32 x 40GbE fiber ports for high-performance and flexible deployments.
  • Supports up to 96 x 10GbE links for server scalability with 8 x 40GbE uplinks.
  • With hardware VXLAN VTEP support the switch works well for multi-tenancy and overlay technologies.
  • Provides the flexibility for either 10GbE top-of-rack or 40GbE spine deployments.

High-performance Data Center Switching

  • The HP Altoline 6700 Switch Series delivers 2.56 Tbps switching capacity for the most demanding applications.
  • The switch supports up to 1440 MPPS throughput for data intensive environments.
  • With up to 8 x 40GbE QSFP+ ports the switch has a solution for blazing fast uplinks.
  • The redundant power supplies and fans combat temperature issues in hot/cold isles deployments.

Simplicity and Lower TCO

  • The HP Altoline 6700 Switch Series simplifies switch deployment, management and orchestration with choice of tools from the robust Linux community and ecosystem.
  • With streamlined hardware and multiple software options the 6700 Switch gives you a better fit for your needs.
  • You have a choice of common software tools for use in server and networking.
  • Provides economies of scale that meet the needs of your web-scale data centers.

Specifications:

For a complete list of specifications, please refer to the product datasheet.

HP Altoline 6700 32QSFP+ PPC ONIE AC Back-to-Front Switch (JL115A)

Differentiator:

The HP 6700-32QSFP+ Switch has 32 QSFP+ ports, dual hot-pluggable AC power supplies and power-to-port fan trays, and ultra-low-latency. It is ideally suited for deployment at the spine and server access layer in large enterprise data centers.

Ports:

  • (32) QSFP+ 40GbE ports

Throughput:

up to 1440 Mpps

Routing/switching capacity:

2560 Gbps

Warranty:

3 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)

HP Altoline 6700 32QSFP+ PPC ONIE AC Front-to-Back Switch (JL114A)

Differentiator:

The HP 6700-32QSFP+ Switch has 32 QSFP+ ports, dual hot-pluggable AC power supplies and power-to-port fan trays, and ultra-low-latency. It is ideally suited for deployment at the spine and server access layer in large enterprise data centers.

Ports:

  • (32) QSFP+ 40GbE ports

Throughput:

up to 1440 Mpps

Routing/switching capacity:

2560 Gbps

Warranty:

3 year warranty: with advance replacement and 10 calendar day delivery (available in most countries)

Documentation:

Download the HP Altoline 6700 Switch Series Datasheet (PDF).
