HP FlexFabric 7900 Switch Series
Modular Ethernet Switches

HP FlexFabric 7900 Switch Series

HP Data Center Core Switches
HP FlexFabric 7900 Switch
USA: FREE Ground ShippingHP FlexFabric 7904 Switch Chassis
#JG682A
Call for lowest Price!
USA: FREE Ground ShippingHP FlexFabric 7910 Switch Chassis
#JG841A
Call for lowest Price!

More pricing below, click here!

Overview:

HP FlexFabric 7900 Modular Core Switch is a compact modular data center core switch supporting virtualized data centers and evolutionary needs of private and public clouds deployments. Delivering unprecedented levels of performance, buffering, scale, and availability with high density 10GbE and 40GbE interfaces, using only a fraction of the footprint used by traditional chassis.

The switch supports full Layer 2 and 3 features, including advanced features such as TRILL and HP Intelligent Resilient Fabric (IRF), which enable scale-out, two-tier leaf-spine architecture.

Highlights:

  • Nonblocking and lossless Clos architecture
  • Large Layer 2 scaling with TRILL and HP IRF
  • VxLAN support for virtualized and cloud deployments
  • SDN enabled with OpenFlow1.3 support
  • High 10GbE, 40GbE and 100GbE density across 9.6 Tbps switch fabric

Features & Benefits:

Next Generation Compact Modular Data Center Core Switch

The HP FlexFabric 7900 Modular Core Switch supports virtualized data centers and public and private clouds deployments. Supports scale-out, two-tier leaf-spine architectures with greater reliability.

Delivers Unprecedented Levels of Performance at Lower Cost

The HP FlexFabric 7900 Modular Core Switch provides high density 10GbE and 40GbE interfaces in a smaller footprint than a traditional modular chassis. Combines the investment protection and flexibility of a chassis – but in a smaller foot print and at a lower entry price. Includes feature rich HP Comware capabilities and simplified zero cost/complexity licensing.

Specifications:

For complete product specifications, please refer to the product datasheet.

HP FlexFabric 7904 Switch Chassis (JG682A)

  • Differentiator: (4) I/O slots, integrated switch fabric and MPU. Compact modular data center core switch designed to support virtualized data centers and evolution needs of private and public clouds deployments.
  • Ports: (4) I/O module slots. Supports a maximum of 48 40GbE ports or 192 10GbE ports or 96 1/10GbE ports, or a combination
  • Memory and processor: Dual Core MIPS64 @ 1.2 GHz, 512 MB flash, 4 GB DDR2 SDRAM
  • Throughput: up to 2.3 Bpps
  • Routing/switching capacity: 3.8 Tbps
  • Management features: Imc - intelligent management center, Command-line interface, Out-of-band management (serial rs-232c), Snmp manager, Telnet, Terminal interface (serial rs-232c), Modem interface, Ieee 802.3 ethernet mib, Ethernet interface mib
  • Dimensions: (W x D x H) 17.32 x 28.35 x 3.47 in (44 x 72 x 8.81 cm)
  • Weight: 39.46 lb (17.9 kg)
  • What's included: (1) HP FlexFabric 7904 Switch Chassis, Warranty: 1 year, advance replacement, 10 calendar day, phone support, software releases

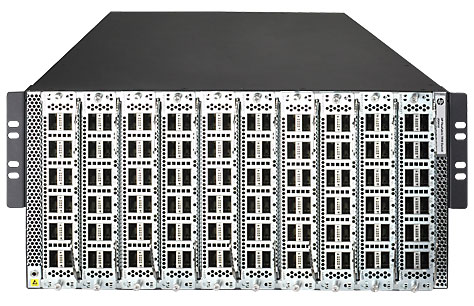

HP FlexFabric 7910 Switch Chassis (JG841A)

  • Differentiator: (10) I/O slots, fully redundant switch fabric and MPU in compact modular form factor. Full featured data center core switch designed to support virtualized ta centers and evolution needs of private and public clouds deployments.
  • Ports: (10) I/O module slots. Supports a maximum of 120 40GbE ports or 480 10GbE ports or 240 1/10GbE ports, or a combination
  • Memory and processor: Dual Core MIPS64 @ 1.0 GHz, 1 GB flash, 8 GB DDR2 SDRAM
  • Throughput: up to 5.8 Bpps
  • Routing/switching capacity: 9.6 Tbps
  • Management features: Imc - intelligent management center, Command-line interface, Out-of-band management (serial rs-232c), Snmp manager, Telnet, Terminal interface (serial rs-232c), Modem interface, Ieee 802.3 ethernet mib, Ethernet interface mib
  • Dimensions: (W x D x H) 17.32 x 29.92 x 8.66 in (43.99 x 76 x 22 cm)
  • Weight: 63.49 lb (28.8 kg)
  • What's included: (1) HP FlexFabric 7910 Switch Chassis, Warranty: 1 year, advance replacement, 10 calendar day, phone support, software releases

Documentation:

Download the HP FlexFabric 7900 Switch Series Datasheet (PDF).
