HP NJ5000 5G PoE+ Walljack
Fixed Port L2 Managed Ethernet Switches

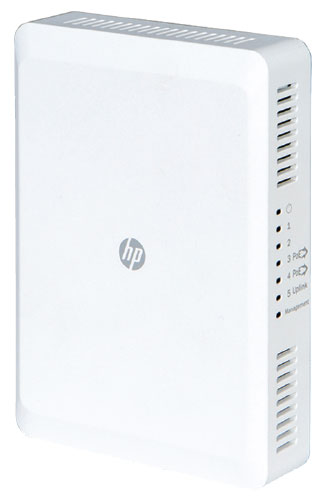

HP NJ5000 5G PoE+ Walljack

HP Campus/Branch LAN Access Switches
HP NJ5000 Walljack Switch Series
USA: FREE Ground ShippingHP NJ5000 5G PoE+ Walljack
#JH237A
Contact us for Pricing!

More pricing below, click here!

Overview:

The HP NJ5000 5G PoE+ Walljack is ideal for enterprise organizations that need to add Gigabit network ports without the cost of running more cabling. This fully managed, compact, 5-port Gigabit switch can quickly be installed in a standard wall outlet box.

It also offers an "unmanaged" mode for plug-and-play connectivity. The NJ5000 provides four GbE ports for local connectivity plus one uplink port.

It requires a single Power over Ethernet (PoE) cable drop. One or two ports can be configured to power attached downstream devices such as IP telephones or wireless access ports with PoE.

Key Features:

  • Innovative switch with in-the-wall installation
  • Easy, secure port expansion without new cabling
  • PoE or PoE+ powered with PoE forwarding on up to two ports
  • Supports both fully-managed and unmanaged modes
  • HP Limited Lifetime warranty

Features & Benefits:

Simplified Deployment and Reduced Costs

  • The HP NJ5000 5G PoE+ Walljack offers a clever, secure way to add more GbE ports in a remote location without the cost and disruption of running new wiring. Quickly upgrade from a single port outlet to four switched GbE ports.
  • Leverage Power over Ethernet (PoE+) to power the walljack as well as power 1-2 attached PoE capable devices such as IP-based VoIP phones or wireless access points, with no extra electrical wiring required.
  • It's backed by the industry-leading HP Limited Lifetime Warranty 2.0 with 3 years of 24x7 phone support.

Flexibility

  • The HP NJ5000 5G PoE+ Walljack can be fully managed right out of the box with the Comware Command Line Interface (CLI).
  • For plug-and-play ease of use, the NJ5000 can be set to an "unmanaged" mode.
  • With a streamlined design, the NJ5000 can deployed in a standard wall outlet box, used on the desktop or wall-mounted.

Secure, High-performance for Demanding Environments

  • The HP NJ5000 5G PoE+ Walljack brings traffic control and security features to the outside edge of the network with consistent enterprise-grade capabilities and managements as found on other HP campus networking products.
  • It protects the network from unauthorized access with 802.1x network login, virtual local area networks (VLANs) and access control lists (ACLs).
  • The switch includes Spanning Tree, Rapid Spanning Tree and Multiple Spanning Tree functionality for better network performance and resiliency.

Specifications:

For complete product specifications, please refer to the product datasheet.

  • Differentiator: A compact 5-port managed switch that can be easily installed in a standard wall outlet box. Powered by PoE. Capable of forwarding PoE power on two ports. Also support unmanaged mode.
  • Ports: (5) RJ-45 auto-negotiating 10/100/1000 ports. Supports a maximum of (5) autosensing 10/100/1000 ports.
  • Memory and Processor: SingleCore @ 500 MHz, 32 MB flash, Packet buffer size: 512 KB, 128 MB DDR SODIMM
  • Latency: 100 Mb Latency: < 40 µs, 1000 Mb Latency: < 8 µs
  • Throughput: up to 7.4 Mpps
  • Switching Capacity: 16-port model has 32 Gbps. 24-port PoE+ model has 48 Gbps. 24-port SFP model has 52 Gbps. 24-Port SFP+ model has 88 Gbps.
  • Routing/Switching Capacity: 10 Gbps
  • Management Features: IMC - Intelligent Management Center, Command-line interface, Web browser, SNMP manager, IEEE 802.3 Ethernet mib
  • Dimensions (W x D x H): 3.39 x 1.38 x 4.72 in (8.6 x 3.5 x 12 cm)
  • Weight: 0.44 lb (0.2 kg)
  • What's in the box: (1) HP NJ5000 5G PoE+ Walljack, (1) In-wall mounting kit, (1) Documentation package (Quick Start Guide, warranty information, and etc.)
  • Warranty: Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries).

Documentation:

Download the HP NJ5000 Walljack Switch Series Datasheet (PDF).
